Pressure Gauge 63mm 1/4 Lower Digital Packaged

Pressure Gauge 63mm 1/4 Lower Digital Packaged
Pressure Gauge 63mm 1/4 Lower Digital Packaged
Pressure Gauge 63mm 1/4 Lower Digital Packaged
Pressure Gauge 63mm 1/4 Lower Digital Packaged
Pressure Gauge 63mm 1/4 Lower Digital Packaged
!
NOTE: Items not in store may take 3 - 5 working days longer.
PRICES: In-store prices may differ from online prices.
  • Stock: In Stock
  • Model: GAV M63P
  • Weight: 0.15kg
  • Dimensions: 65.00mm x 65.00mm x 45.00mm
  • SKU: GAV M63P
  • UPC: 6009515844103
GAV GAV
Based on 0 reviews. - Write a review
R 1,738.80
Ex VAT: R 1,512.00
Add to Cart
Question
Add to Wish List

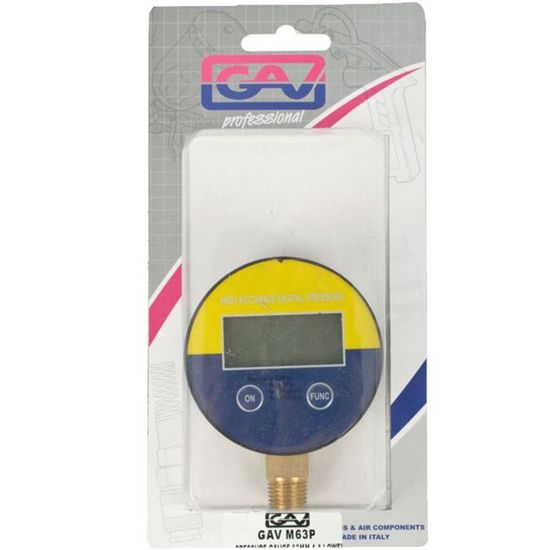

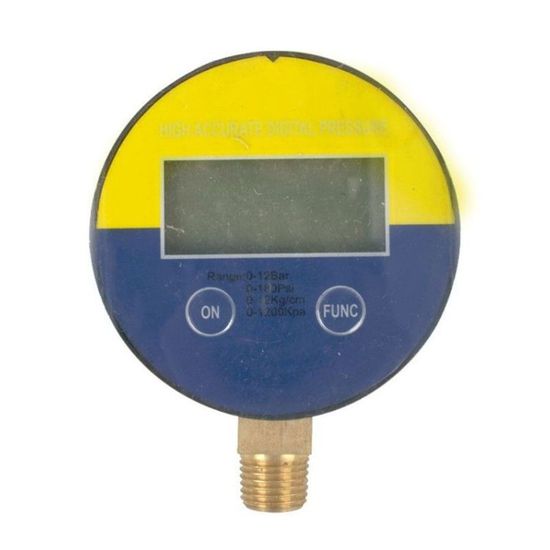

GAV digital pressure gauge 63mm 1/4" lower packaged

At a Glance: Professional 63 mm digital pressure gauge with a 1/4" BSP bottom connection, multi-unit pressure display and retail blister packaging.

The GAV M63P digital pressure gauge provides highly accurate electronic pressure measurement for compressed-air systems. Featuring a large 63 mm LCD display and a 1/4" BSP male bottom connection, it is ideal for air compressors, pressure regulators, FRL units and industrial pneumatic equipment. The digital display supports multiple pressure units, including Bar, PSI, kPa and kgf/cm², allowing convenient measurement for a wide range of applications. With a measuring range of 0–12 Bar (0–180 PSI), the M63P delivers reliable performance and is supplied in retail blister packaging. Manufactured in Italy, it offers the quality and durability expected from genuine GAV pneumatic products. :contentReference[oaicite:0]{index=0}

Accurate digital pressure monitoring for professional pneumatic systems

The GAV M63P combines electronic accuracy with a large digital display, making it easy to monitor system pressure and optimise pneumatic equipment performance while helping to prevent over-pressurisation.

Product highlights

  • 63 mm LCD display Large, clear digital pressure readings.
  • Multi-unit measurement Displays Bar, PSI, kPa and kgf/cm².
  • 1/4" BSP male bottom connection Standard pneumatic fitting.
  • 0–12 Bar measuring range Suitable for most compressed-air systems.
  • Retail blister packaging Ideal for retail display and protected storage.
  • Made in Italy Genuine GAV professional quality.

Extra Information

  • Electronic pressure gauge with digital LCD display.
  • Bottom-entry mounting with 1/4" BSP male thread.
  • Supplied in retail blister packaging.
  • Manufactured in Italy.

Pro Tips

  • Select the pressure unit that matches your workshop equipment to reduce conversion errors.
  • Install the gauge where the display can be viewed easily during operation.
  • Replace the battery promptly if the display becomes dim or unstable.
  • Avoid exposing the gauge to excessive vibration, moisture or impact.
  • Verify accuracy periodically against a calibrated reference gauge when precise pressure control is required.
  • Install downstream of the pressure regulator to monitor regulated outlet pressure accurately.

How to Use

  • Depressurise the compressed-air system.
  • Install the gauge into a compatible 1/4" BSP bottom-entry port.
  • Apply a suitable thread sealant if required.
  • Press the ON button to activate the display.
  • Use the Function button to select the required pressure unit.
  • Pressurise the system and monitor the displayed pressure.

Features

  • Digital LCD display Delivers highly accurate electronic pressure readings.
  • ON and Function buttons Simple operation and pressure unit selection.
  • Bottom-entry mounting Fits compressors, regulators and FRL assemblies.
  • Compact 63 mm housing Suitable for workshop and industrial environments.

Benefits

  • High measurement accuracy: Improves pressure monitoring compared to analogue gauges.
  • Easy to read: Large LCD display provides excellent visibility.
  • Flexible pressure units: Switch easily between Bar, PSI, kPa and kgf/cm².
  • Protects equipment: Helps maintain the correct operating pressure for pneumatic systems.

Application

  • Air compressors
  • Pressure regulators
  • FRL air preparation units
  • Compressed-air distribution systems
  • Pneumatic machinery
  • Industrial workshops

Safety

  • Always depressurise the compressed-air system before installation or removal.
  • Do not exceed the maximum pressure rating of 12 Bar.
  • Protect the LCD display from impact, excessive vibration and moisture.
  • Replace the battery using the recommended type only.
  • Use only with compatible compressed-air and pneumatic applications.

Specifications

Description Spec
Brand GAV
Cat No. M63P
Product Type Digital pressure gauge
Dial Diameter 63 mm
Connection Position Bottom
Thread Size 1/4" BSP Male
Pressure Range 0–12 Bar (0–180 PSI)
Display Type Digital LCD
Pressure Units Bar, PSI, kPa, kgf/cm²
Packaging Blister Pack
Application Compressed-air systems
Country of Manufacture Italy

In the box:

  • 1 x GAV M63P digital pressure gauge
  • Retail blister packaging
Tags: GAV , M63P , Digital Pressure Gauge , 63mm Pressure Gauge , 1/4 BSP Bottom Pressure Gauge , Compressed Air Gauge , Digital Air Pressure Gauge , Pneumatic Pressure Gauge , Packaged
