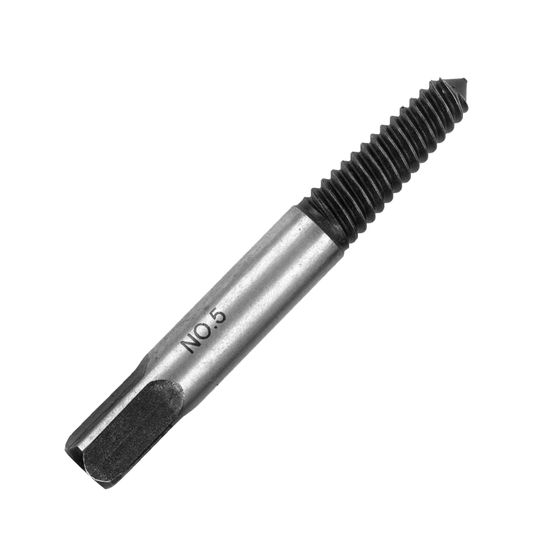

Screw Extractor No.5 Carded

Size: M14 - M18
Diameter: 7 0mm
Recommended Drill Size: 9.0 mm
Shank: 8.5mm Square Shank

Application:

The Tork Craft Screw Extractor is for the removal of broken bolts and studs, made of carbon steel. Determine the size of the bolt and the desired extractor size, use a file and flatten the broken bolt surface, usually bolts that broke are left with an uneven surface.

Locate the center on the flattened surface and mark with a center punch. Drill a pilot hole, start off with a small diameter and increase to the recommended drill size depending on the extractor size in use.

Insert the extractor into the pilot hole and using a tap wrench the bolt can now be extracted carefully, by turning the screw extractor anti-clockwise.

• Carbon Steel
• Quick & Easy removal of broken bolts and studs

Recommended tap wrench:

• NR9004C
• NR9005C
• NR9007C
