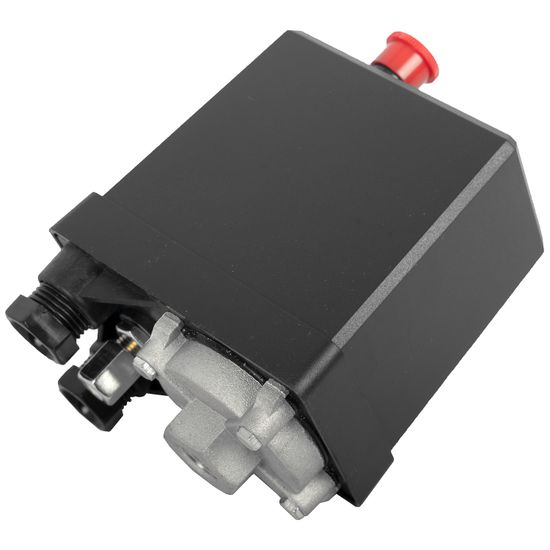

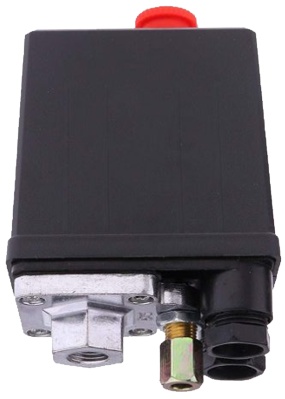

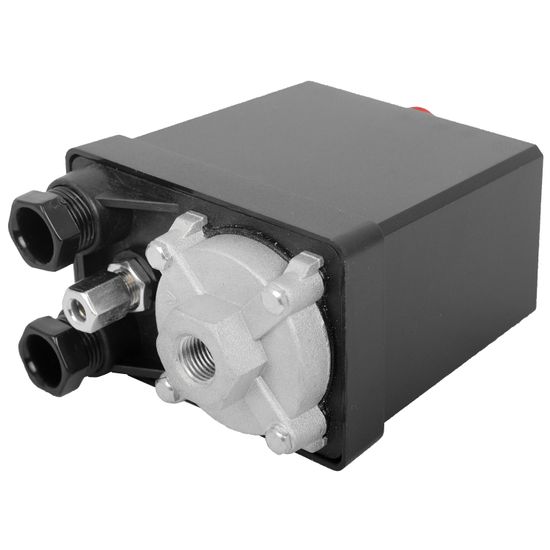

Press.switch 3ph.1 Way Brass Ferrule
- Stock: In Stock
- Model: SD42005 14745
- Weight: 0.62kg
- Dimensions: 183.00mm x 103.00mm x 65.00mm
- SKU: SD42005
- UPC: 6009515802080
R 603.75
Ex VAT: R 525.00
Pressure switch - One way, three phase
The pressure switch is used to start and stop a compressor to maintain pressure in a pneumatic system.
Voltage: Three phase
Unloader connection Brass ferrule
Thread: 1/4 BSP
Ports: One way
Pressure rating: Max 12.5 Bar
Air pressure is important:
Compressors need quite a bit of power to generate compressed air and it is advised to keep the electrical cable to a minimum length. A 10m cable lead should have a core thickness of at least 2.5mm. If distance is important to supply compressed air, rather increase the length of hose instead of using an extension lead.
An extension lead could shorten the life expectancy of the pressure switch.
