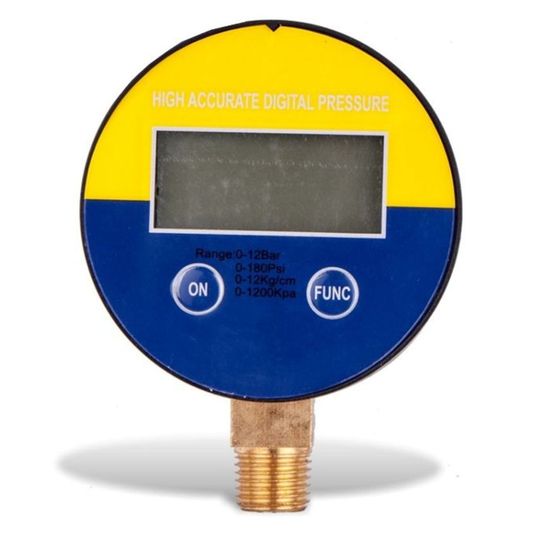

Name: Pressure Gauge 63mm 1/4 Lower Digital
Brand: GAV
SKU: GAV M63
Price: 1797.45 ZAR
Availability: InStock

Pressure Gauge 63mm 1/4 Lower Digital

NOTE: Items not in store may take 3 - 5 working days longer.
PRICES: In-store prices may differ from online prices.

Stock: In Stock
Model: GAV M63 9186
Weight: 0.14kg
Dimensions: 78.00mm x 78.00mm x 78.00mm
SKU: GAV M63
UPC: 6009515853440

GAV

Based on 0 reviews. - Write a review

R 1,797.45

Ex VAT: R 1,563.00

Qty

Add to Cart

Question

Add to Wish List

GAV digital pressure gauge 63mm 1/4" lower

At a Glance: Professional 63 mm digital pressure gauge with a 1/4" BSP bottom connection, multi-unit pressure display and high-accuracy electronic measurement.

The GAV M63 digital pressure gauge provides fast, accurate and easy-to-read pressure monitoring for compressed-air systems. Featuring a large 63 mm LCD display and a 1/4" BSP male bottom connection, it is ideal for compressors, pressure regulators, FRL units and industrial pneumatic equipment. The digital display can measure pressure in Bar, PSI, kPa and kgf/cm², providing excellent versatility for professional workshops and manufacturing environments. With a measurement range of 0–12 Bar (0–180 PSI), the GAV M63 delivers reliable electronic pressure measurement and is manufactured in Italy to GAV&s professional quality standards. :contentReference[oaicite:0]{index=0}

High-accuracy digital pressure monitoring

The GAV M63 offers precise digital pressure readings that are easier to interpret than conventional analogue gauges, helping improve system setup, pneumatic tool performance and overall compressed-air efficiency.

Product highlights

Large 63 mm LCD display Clear digital pressure readings.
Multi-unit measurement Displays Bar, PSI, kPa and kgf/cm².
1/4" BSP bottom connection Suitable for compressors, regulators and FRL systems.
0–12 Bar measuring range Covers most compressed-air applications.
Made in Italy Genuine GAV professional quality.

Extra Information

Electronic pressure gauge with digital LCD display.
Bottom connection for standard regulator and compressor installations.
Supports multiple pressure measurement units.
Manufactured in Italy.

Pro Tips

Use the appropriate pressure unit for your application to minimise conversion errors.
Install the gauge where the display remains easily visible during operation.
Replace the battery when the display becomes dim or unstable.
Avoid exposing the gauge to excessive vibration or direct impact.
Verify readings periodically against a calibrated reference gauge where critical pressure control is required.
Always install downstream of the regulator when monitoring regulated outlet pressure.

How to Use

Depressurise the compressed-air system.
Install the gauge into a compatible 1/4" BSP bottom-entry port.
Apply a suitable thread sealant if required.
Press the ON button to activate the display.
Use the Function button to select the desired pressure unit.
Pressurise the system and monitor the displayed pressure.

Features

Digital LCD display Provides accurate electronic pressure measurement.
ON and Function buttons Easy operation and unit selection.
Bottom-entry 1/4" BSP male thread Standard pneumatic connection.
Compact 63 mm housing Suitable for workshop and industrial installations.

Benefits

Improved accuracy: Provides precise digital pressure readings.
Easy to read: Large LCD display improves visibility.
Multiple pressure units: Switch easily between Bar, PSI, kPa and kgf/cm².
Protects pneumatic equipment: Helps maintain the correct operating pressure.

Application

Air compressors
Pressure regulators
FRL air preparation units
Industrial compressed-air systems
Pneumatic machinery
Workshop maintenance

Safety

Always depressurise the compressed-air system before installation or removal.
Do not exceed the maximum pressure rating of 12 Bar.
Protect the digital display from impact and excessive moisture.
Replace the battery using the recommended type only.
Use only with compatible compressed-air and pneumatic applications.

Specifications

Description	Spec
Brand	GAV
Cat No.	M63
Product Type	Digital pressure gauge
Dial Diameter	63 mm
Connection Position	Bottom
Thread Size	1/4" BSP Male
Pressure Range	0–12 Bar (0–180 PSI)
Display Type	Digital LCD
Pressure Units	Bar, PSI, kPa, kgf/cm²
Application	Compressed-air systems
Country of Manufacture	Italy

In the box:

1 x GAV M63 digital pressure gauge

Tags: GAV , M63 , Digital Pressure Gauge , 63mm Pressure Gauge , 1/4 BSP Bottom Pressure Gauge , Compressed Air Gauge , Digital Air Pressure Gauge , Pneumatic Pressure Gauge
